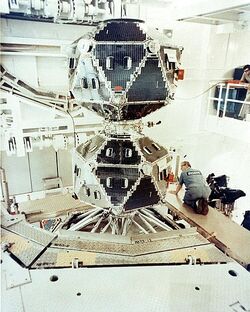

The Vela-5A/B Satellite in its cleanroom. The two satellites, A and B, were separated after launch.

The project[]

Vela was the name of a group of satellites developed as the Vela Hotel element of Project Vela by the United States to monitor compliance with the 1963 Partial Test Ban Treaty by the Soviet Union.

They were a major series of 12 unmanned American reconnaissance satellites developed to detect radiation from nuclear explosions in the Earth’s atmosphere, that were lunched from 1963 to 1970.

They made several significant astronomical discoveries, including the discovery of gamma-ray bursts. Each of the Vela satellites carried radiation special detectors sensitive to X-ray and later on a gamma-ray emissions (they had discovered the first natural gamma-ray bursts), as well as some normal cameras and optic detectors as well.

The first designed had 12 external X-ray detectors and 18 internal neutron and gamma-ray detectors. Power was provided 90 watts solar panels. They orbit at 60,000 miles (96,000 kilometres).

The Advanced Vela satellites also had non-imaging silicon photodiode sensors that were called 'bhangmeters'. They measured light levels at sub-millisecond intervals and thus could detect the location of a nuclear explosion to within about 3,000 miles of the satellite's location.

Vela was the name of a group of satellites developed as the Vela Hotel element of Project Vela by the United States to monitor compliance with the 1963 Partial Test Ban Treaty by the Soviet Union.

Vela started out as a small budget research program in 1959. It ended 26 years later as a successful, cost-effective military space system, which also provided scientific data on natural sources of space radiation. In the 1970s, the nuclear detection mission was taken over by the Defense Support Program (DSP) satellites. In the late 1980s, it was augmented by the Navstar Global Positioning System (GPS) satellites. The program is now called the Integrated Operational Nuclear Detection System (IONDS).


The total number of satellites built was 12, six of the Vela Hotel design and six of the Advanced Vela design. The Vela Hotel series was to detect nuclear initiations in space, while the Advanced Vela series was to detect not only nuclear explosions in space but also in the atmosphere. They were sent aloft so as to help in force the 1963 Partial Test Ban Treaty.

All spacecraft were manufactured by TRW and launched in pairs, either on an Atlas-Agena or Titan III-C boosters. They were placed in orbits of 118,000 km (73,000 miles), well above the Van Allen radiation belts. Their apogee was about one-third of the distance to the Moon. The first Vela Hotel pair was launched on October 17, 1963, one week after the Partial Test Ban Treaty went into effect, and the last in 1965. They had a design life of six months, but were actually shut down after five years. Advanced Vela pairs were launched in 1967, 1969 and 1970. They had a nominal design life of 18 months, later changed to 7 years. However, the last satellite to be shut down was Vehicle 9 in 1984, which had been launched in 1969 and had lasted nearly 15 years.


The original Vela satellites were equipped with 12 external X-ray detectors and 18 internal neutron and gamma-ray detectors. They were equipped with solar panels generating 90 watts.

The Advanced Vela satellites were additionally equipped with two non-imaging silicon photodiode sensors called bhangmeters which monitored light levels over sub-millisecond intervals. They could determine the location of a nuclear explosion to within about 3,000 miles. Atmospheric nuclear explosions produce a unique signature, often called a "double-humped curve": a short and intense flash lasting around 1 millisecond, followed by a second much more prolonged and less intense emission of light taking a fraction of a second to several seconds to build up. The effect occurs because the surface of the early fireball is quickly overtaken by the expanding atmospheric shock wave composed of ionised gas. Although it emits a considerable amount of light itself it is opaque and prevents the far brighter fireball from shining through. As the shock wave expands, it cools down becoming more transparent allowing the much hotter and brighter fireball to become visible again.

No single natural phenomenon is known to produce this signature, although there was speculation that the Velas could record exceptionally rare natural double events, such as a meteoroid strike triggering a lightning superbolt in the Earth's atmosphere, as may have occurred in the Vela Incident.

They were also equipped with sensors which could detect the electromagnetic pulse from an atmospheric explosion.

Additional power was required for these instruments, and these larger satellites consumed 120 watts generated from solar panels. Serendipitously, the Vela satellites were the first devices ever to detect cosmic gamma ray bursts.

The Vela Incident[]

  • For more on this see: Vela Incident.

Some controversy still surrounds the Vela program since on 22 September 1979 the Vela 6911 satellite detected the characteristic double flash of an atmospheric nuclear explosion near the Prince Edward Islands. Still unsatisfactorily explained, this event has become known as the Vela Incident. President Jimmy Carter initially deemed the event to be evidence of a joint Israeli and Apartheid South African nuclear test, though the now-declassified report of a scientific panel he subsequently appointed while seeking reelection concluded that it was probably not the event of a nuclear explosion. An alternative explanation involves a magnetospheric event affecting the instruments.

Vela 5A and 5B[]

The scintillation X-ray detector (XC) aboard Vela 5A and its twin Vela 5B consisted of two 1 mm thick NaI(Tl) crystals mounted on photomultiplier tubes and covered by a 0.13 mm thick beryllium window. Electronic thresholds provided two energy channels, 3–12 keV and 6–12 keV. In front of each crystal was a slat collimator providing a full width at half maximum (FWHM) aperture of ~6.1 × 6.1 degrees. The effective detector area was ~26 cm2. The detectors scanned a great circle every 60 seconds, and covered the whole sky every 56 hours. Sensitivity to celestial sources was severely limited by the high intrinsic detector background, equivalent to about 80% of the signal from the Crab Nebula, one of the brightest sources in the sky at these wavelengths.

The Vela 5B satellite X-ray detector remained functional for over ten years.

Vela 6A and 6B[]

Like the previous Vela 5 satellites, the Vela 6 nuclear test detection satellites were part of a program run jointly by the Advanced Research Projects of the U.S. Department of Defense and the U.S. Atomic Energy Commission, managed by the U.S. Air Force. The twin spacecraft, Vela 6A and 6B, were launched on 8 April 1970. Data from the Vela 6 satellites were used to look for correlations between gamma-ray bursts and X-ray events. At least two good candidates were found, GB720514 and GB740723. The X-ray detectors failed on Vela 6B on 27 January 1972 and on Vela 6A on 12 March 1972.

Role of Vela in discovering gamma-ray bursts[]

On July 2, 1967, at 14:19 UTC, the Vela 4 and Vela 3 satellites detected a flash of gamma radiation unlike any known nuclear weapons signature. Uncertain what had happened but not considering the matter particularly urgent, the team at the Los Alamos Scientific Laboratory, led by Ray Klebesadel, filed the data away for investigation. As additional Vela satellites were launched with better instruments, the Los Alamos team continued to find inexplicable gamma-ray bursts in their data. By analyzing the different arrival times of the bursts as detected by different satellites, the team was able to determine rough estimates for the sky positions of sixteen bursts and definitively rule out a terrestrial or solar origin. The discovery was declassified and published in 1973 as an Astrophysical Journal article entitled "Observations of Gamma-Ray Bursts of Cosmic Origin". This alerted the astronomical community to the existence of gamma-ray bursts (GRBs), now recognised as the most violent events in the universe.
